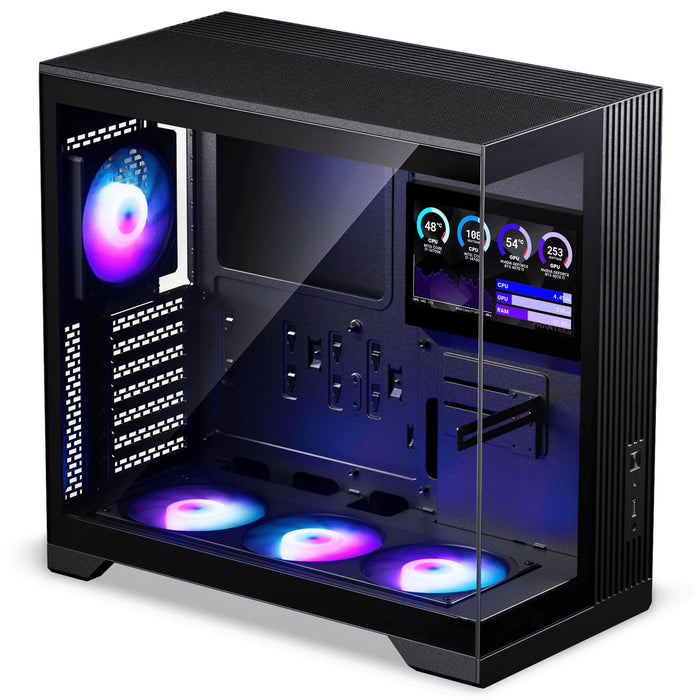

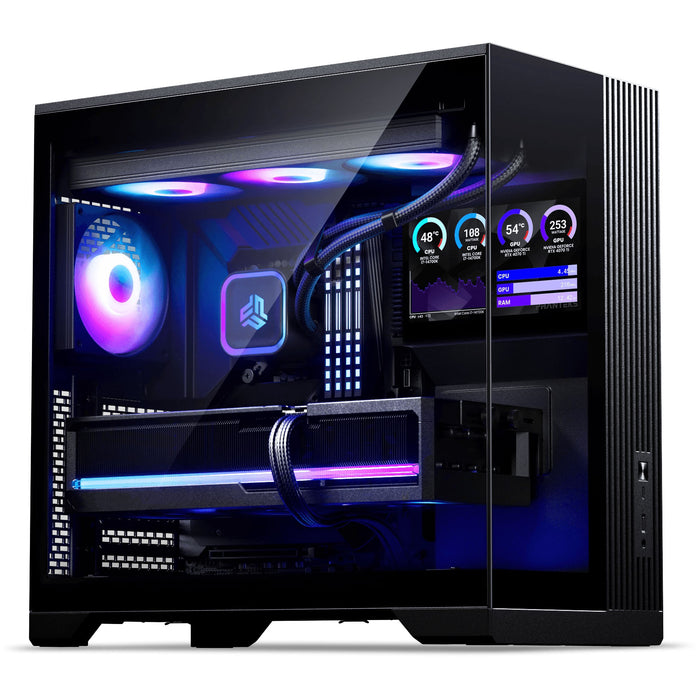

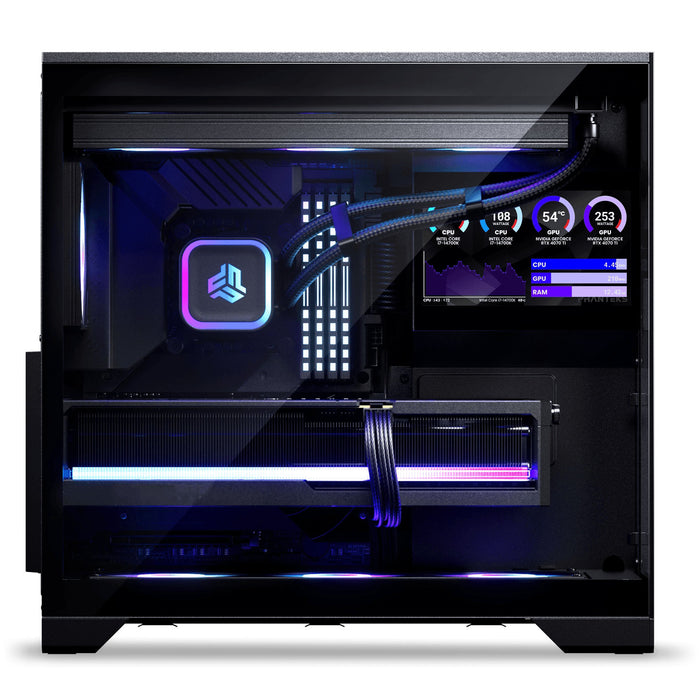

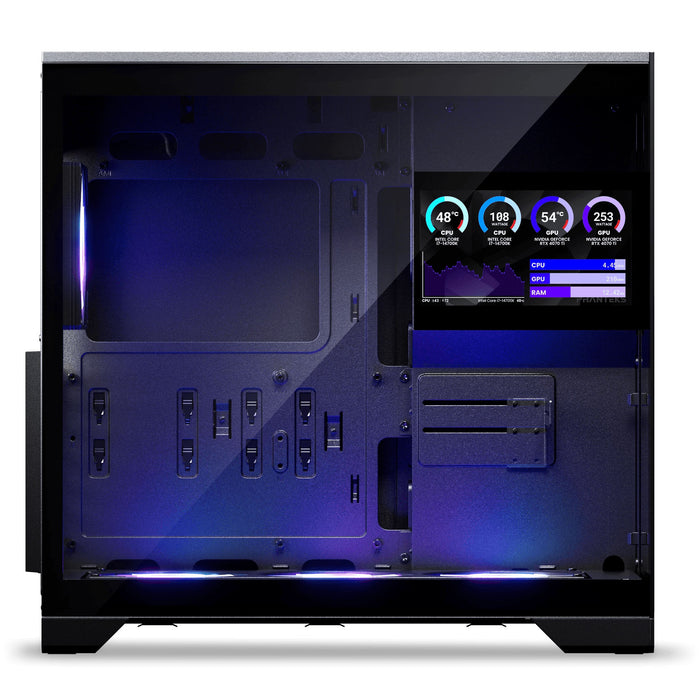

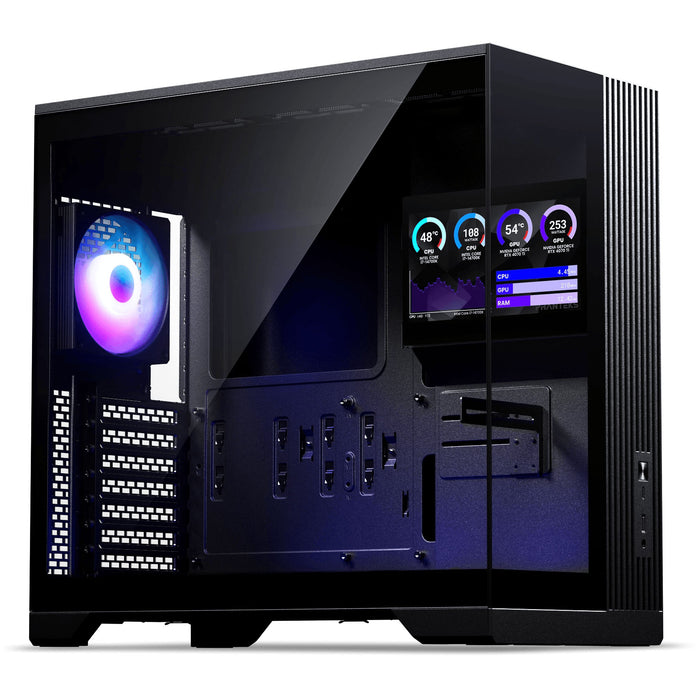

The Phanteks XT V5-LCD is a compact ATX mid-tower case that pairs a panoramic tempered glass design with a bottom and side-focused airflow layout. An integrated 7-inch IPS display adds a customisable visual centrepiece, while the spacious interior and broad hardware support make it a strong foundation for gaming, content creation, and enthusiast builds.

Key Features

Compact ATX mid-tower supporting ATX, Micro-ATX, and Mini-ITX motherboards
Panoramic tempered glass front and side panels to showcase internal components
Pre-installed S25-120 and S25-360 ARGB fans: 1x 120mm rear plus 3x 120mm bottom/side
Top mount for a 360mm radiator to support custom liquid-cooling loops
Up to 7x 120mm fan mounts (3x top, 1x rear, 3x bottom)
Integrated 7-inch IPS LCD display (1024 x 600) controlled via the Phanteks Nexlinq Windows app through an internal USB header
Storage support for 2x 2.5" SSDs and 1x 3.5" HDD
Cable routing channels, generous motherboard tray clearance, and dedicated tie-down points
Removable dust filters and included GPU support bracket

Build Compatibility

Maximum CPU cooler height: 175 mm
Maximum GPU length: 430 mm
Maximum GPU width: 175 mm
Maximum PSU length: 159 mm (ATX form factor)
7 expansion slots

Front I/O

1x USB 3.2 Type-C
1x USB 3.0 Type-A
1x combined 3.5 mm audio output / input jack

Phanteks XT V5-LCD Compact ATX Case
