Model	D400
Color	Black
Dimension	488mm (D) × 239mm (W) × 514mm (H)
Material	SPCC & SGCC Steel, ABS plastic, Tempered Glass
Motherboard	Mini-ITX / M-ATX / ATX
Drive Bay	2.5" SSD ×2 or 3.5" HDD ×1 + 2.5" SSD ×1 / 2.5" SSD ×1 or 3.5" HDD ×1
Fan	Top: 120mm ×3 / 140mm ×2 (optional) Side: 120mm ×3 (optional) Rear: 120mm ×1 (optional) Power Compartment: 120mm ×3 (optional)
Water Cooling	Top: 240mm / 280mm / 360mm ×1 (optional) Side: 360mm ×1 (optional)
Power Supply	ATX PS2
CPU Cooler	169mm
Video Card	≤ 450mm
Front I/O Port	USB 3.2 Gen2 Type-C ×1 / USB 3.0 ×2 / Audio ×1 + Mic ×1 (2 in 1)
Expansion Slot	7
Weight	Net 8.5kg

Specifications

Motherboard Support
Max. Motherboard Format	ATX
Compatible Motherboard Formats	ATX, Micro-ATX, Mini-ITX
Lighting
Lighting / RGB	No
Case Features
I/O position	Side
Side panel	with window
Vertical GPU Mount	No
Adjustable Vertical GPU Bracket	Yes
Riser Cable Included	No
Front door	No
Cable Management	No
Filters Included	Yes
Filter Position	Bottom
Noise dampening	No
Mainboard slide / tray	No
Remote included	No
Transport System	No
Colour
Primary Colour	Black
Back Connect
Back Connect	Yes
Radiator Support
Max. Radiator Compatibility	1x Dual (280 mm), 2x Triple (360 mm)
Compliance
Compliance Documents	Jonsbo PC Case Compliance and Safety
Additional Contents
Included fans	None
Mounting
Internal Monitor Mount	No
Case VESA Mountable	No
Materials
Materials	Plastic, Tempered Glass, SPCC (steel), SGCC (Steel)
Fan Support
Max. Number of Fans	10
120 mm fans	10
140 mm fans	2
Drive Bays
Max. 2.5 Inch Drives	2
Max. 3.5 Inch Drives	1
2.5 inch internal drive bay	3
3.5 inch internal drive bay	2
Hot swap drive bays	No
Case
Case Type	Mid Tower
Display
Display Included	No
Power Supply
PSU included	No
PSU Format	ATX
Power Supply Position	rear bottom
Internal Dimensions
Max. CPU Cooler Height	169 mm
Max. GPU Length	450 mm
Max. GPU Width	137 mm
Max. PSU Length / Depth	200 mm
Dimensions
Length / Depth	488 mm
Width	239 mm
Height	514 mm
Weight	8.5 kg
Expansion Slots
Expansion slots / PCI slots	7
External Ports
USB 3.1 (external) Type C	1
USB 3.0 (external) Type A	2
Audio outputs & inputs	1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card reader	No

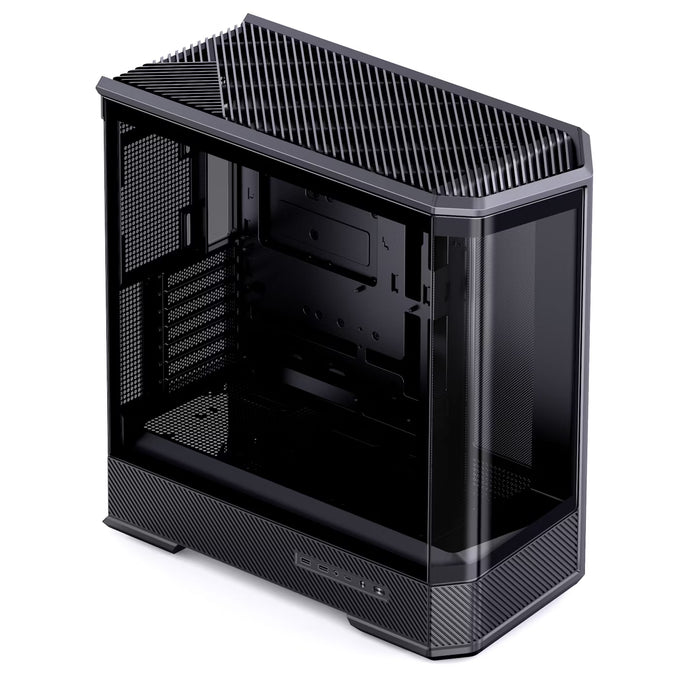

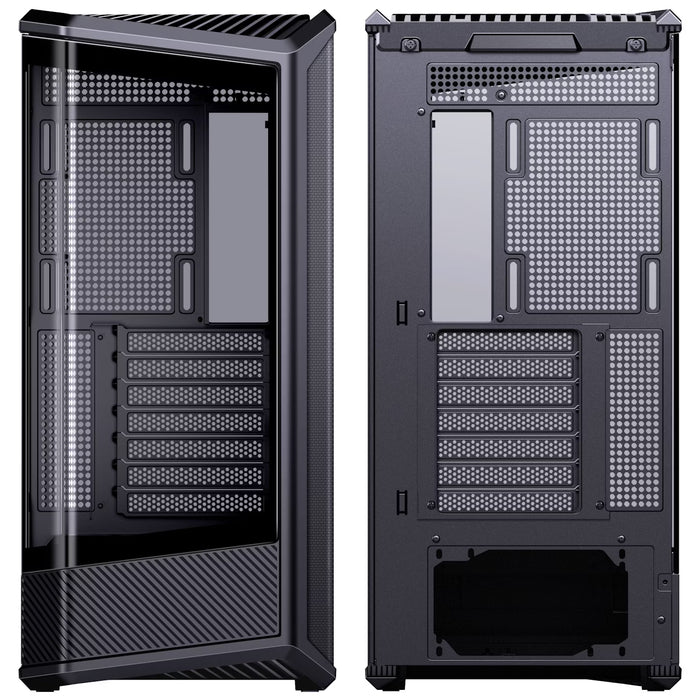

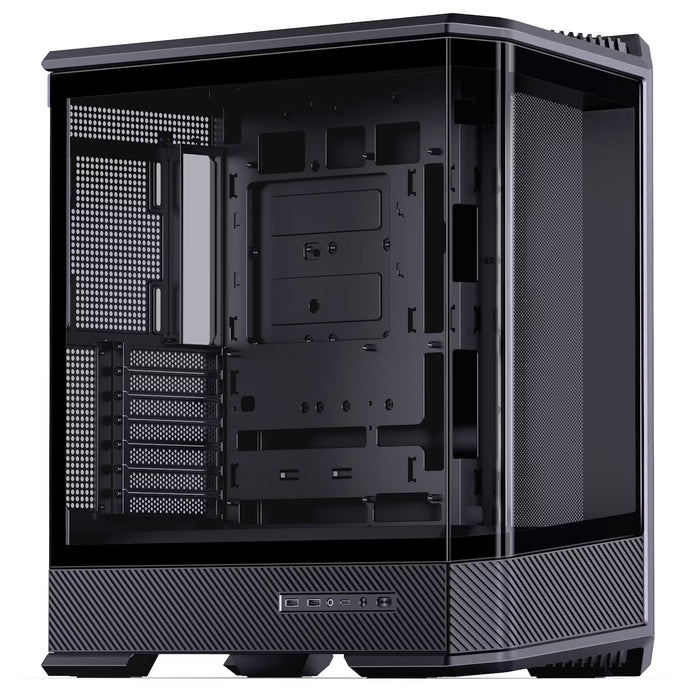

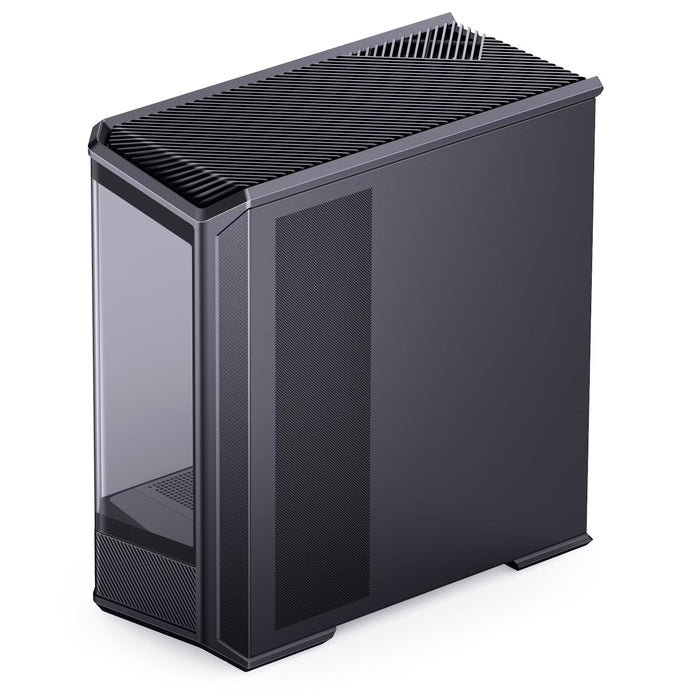

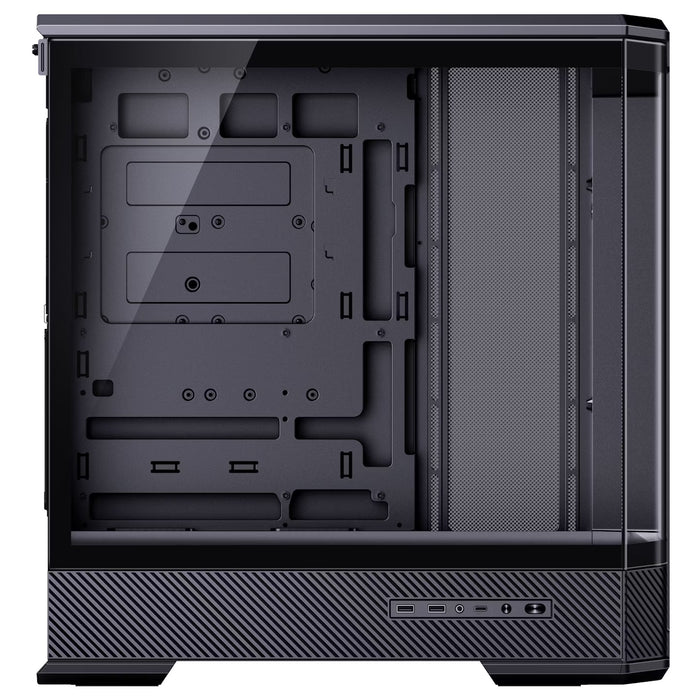

Jonsbo D400 Black ATX PC Case
