WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

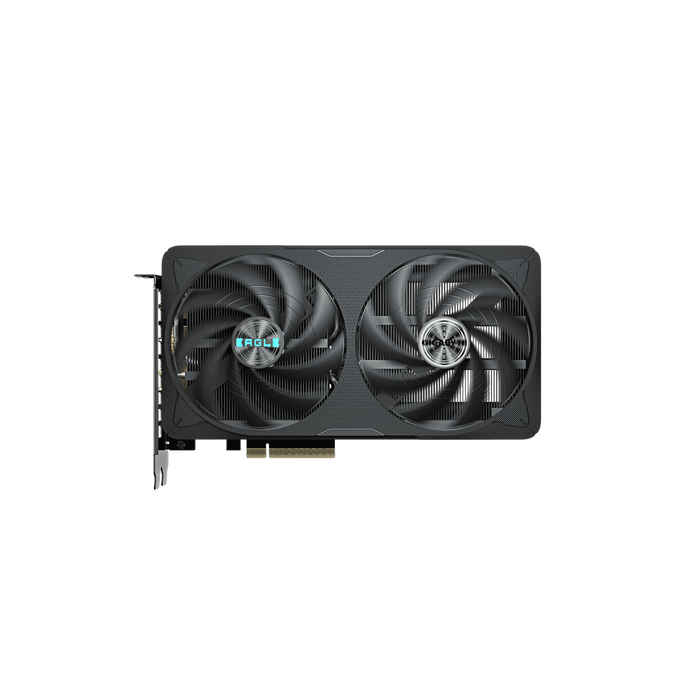

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

COPPER PLATE & COMPOSITE COPPER HEAT PIPE

The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

Dimensions
Length / Depth	208 mm
Width	120 mm
Height	40 mm
Expansion Slots
Expansion Slots Required	2 Slots
Graphics Card
GPU Series	RTX 50 Series
Cooling
Number of GPU Fans	2
Clock Speeds
Max. GPU Clock (Base)	2407 MHz
Max. GPU Clock (Boost)	2617 MHz
Max. Memory Clock	28000 MHz
External Ports

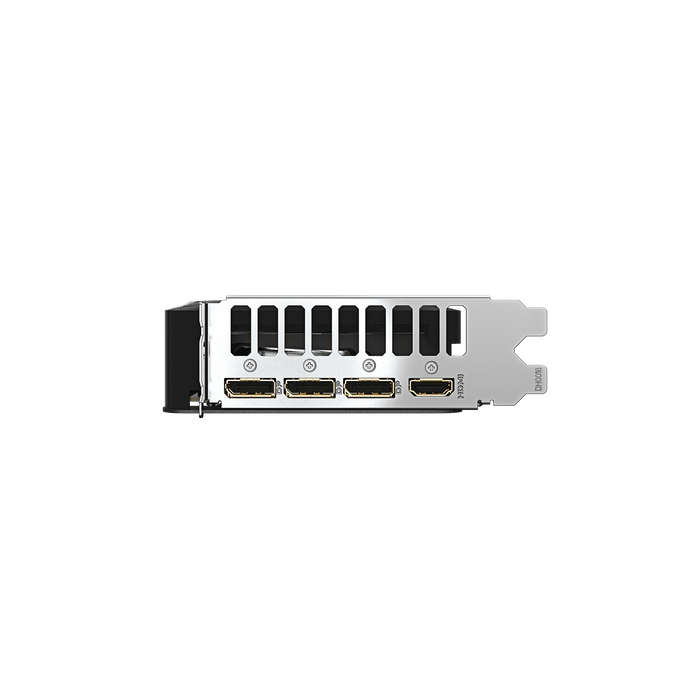

Display Connectors	HDMI (1x), Display Port (3x)
Internal Ports
Required Power Connectors	8-pin PCIe (1x)
GPU Model
GPU Series Name	NVIDIA GeForce RTX 5060 Ti 16GB
Graphics Chip	GB206-300
Manufacturing Process	5 nm
Shader Units	4608
Tensor Cores	144
Raytracing Cores / Ray Acceleratorss	36
GPU Memory Type	GDDR7
Slot Type Standard	PCIe 5.0
GPU Memory Size (GB)	16
GPU Memory Interface (bit)	128
GPU Memory Bandwidth (GB/s)	448
GPU Effective Memory Clock (MHz)	1750

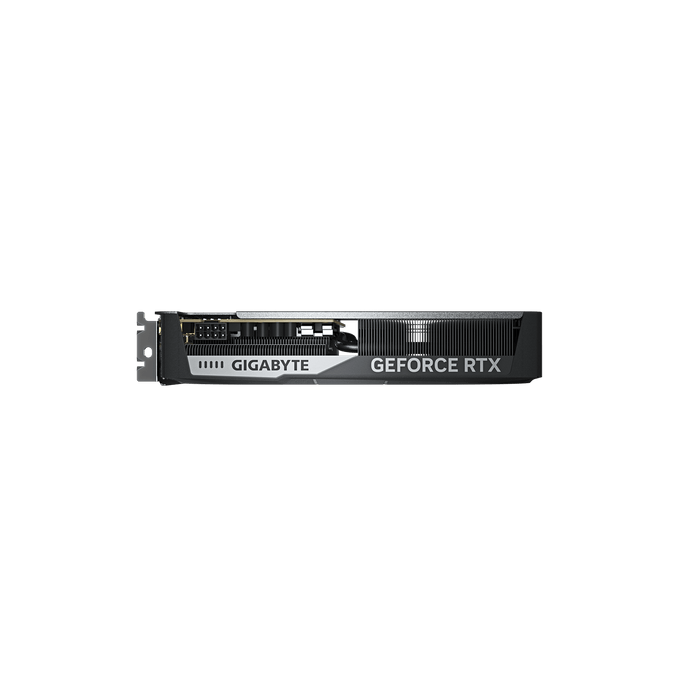

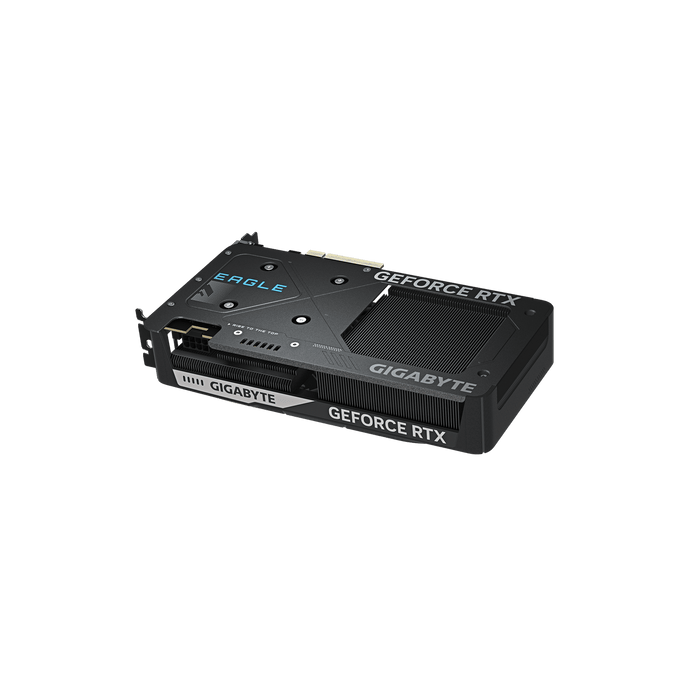

Gigabyte RTX 5060 Ti Eagle OC 16GB Graphics Card
