The DeepCool CG530U 4F is a curved-glass panoramic ATX mid-tower case with a dual-chamber layout. It comes with four pre-installed ARGB fans (three reverse-blade units on the side and one standard fan at the rear) for robust airflow and lighting.

Key Features

Seamless one-piece curved tempered glass panel offers an unobstructed view of your build.
Dual-chamber design separates the PSU and storage from the main compartment; large mesh panels provide effective ventilation.

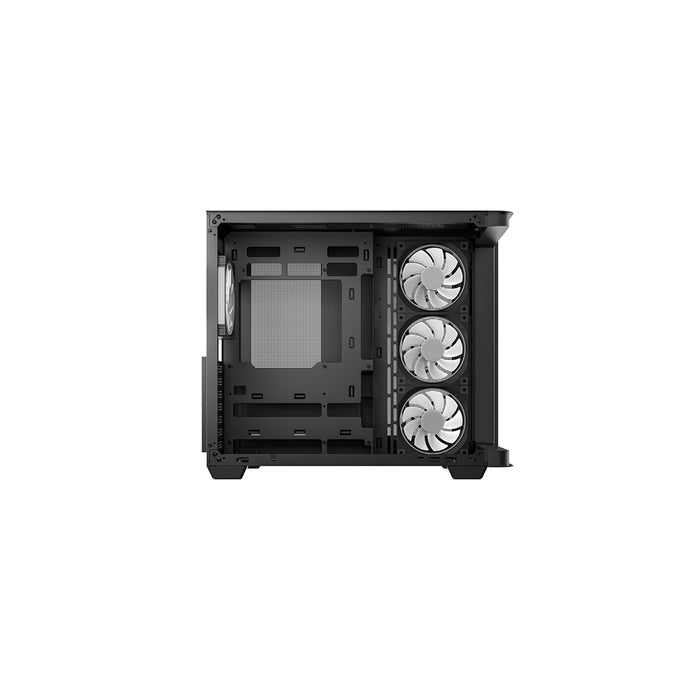

Pre-installed fans: three 120 mm reverse-blade ARGB fans on the side and one 120 mm ARGB fan at the rear.
Radiator support: top – 120/140/240/280/360 mm, side – 120/140/240/280 mm, bottom – 120/240/360 mm.
Compatible with ITX, Micro-ATX and ATX motherboards, including reverse-connector variants.
Top and bottom dust filters included.
45 mm of clearance behind the motherboard tray for tidy cable management.

Specifications

Specification	Details
Dimensions (L×W×H)	475 × 285 × 380 mm
Net Weight	7.3 kg
Motherboard Support	ITX, Micro-ATX, ATX (including reverse connector)
GPU Size Limit	410 mm
CPU Cooler Height Limit	160 mm
Power Supply Support	ATX PS2 (max 210 mm), SFX, SFX-L
Drive Bays	3.5″ × 2, 2.5″ × 2 + 1
Expansion Slots	7
Pre-Installed Fans	Side: 3 × 120 mm, Rear: 1 × 120 mm
Fan Support (Top)	3 × 120 mm / 2 × 140 mm
Fan Support (Side)	3 × 120 mm / 2 × 140 mm
Fan Support (Rear)	1 × 120 mm
Fan Support (Bottom)	3 × 120 mm / 3.5″ HDD + 2 × 120 mm / 2.5″ SSD + 2 × 120 mm
Radiator Support (Top)	120/140/240/280/360 mm
Radiator Support (Side)	120/140/240/280 mm
Radiator Support (Bottom)	120/240/360 mm
Warranty	2 Year Return To Base Warranty

Front I/O

USB 3.0 × 2
Gen2 Type-C × 1
Audio / Mic × 1
LED button

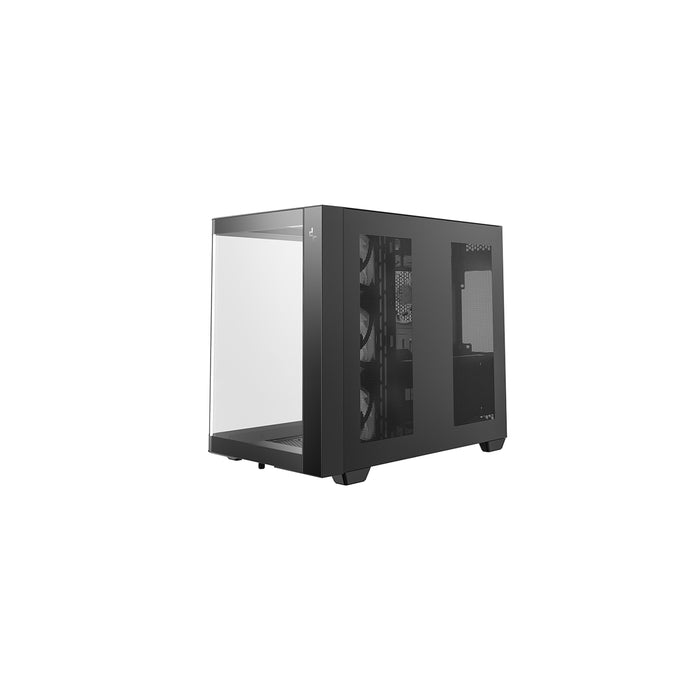

DeepCool CG530U 4F Black Tempered Glass ATX Case
