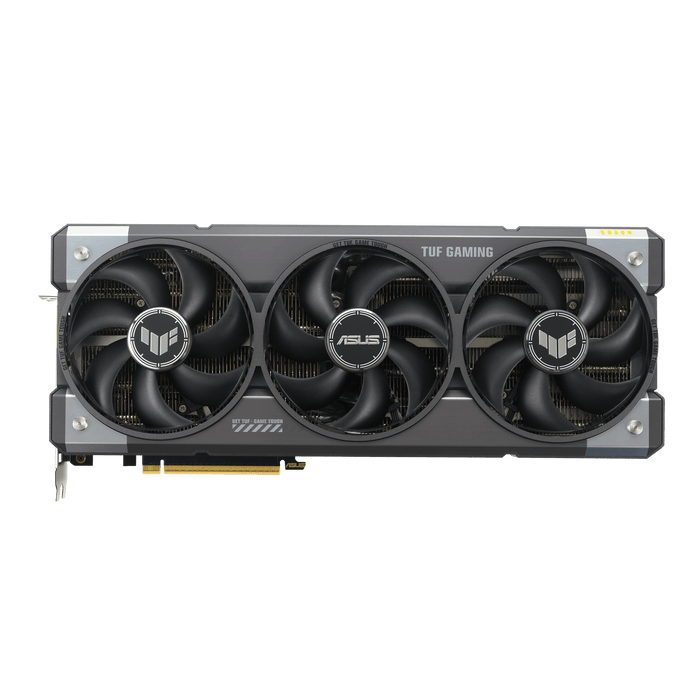

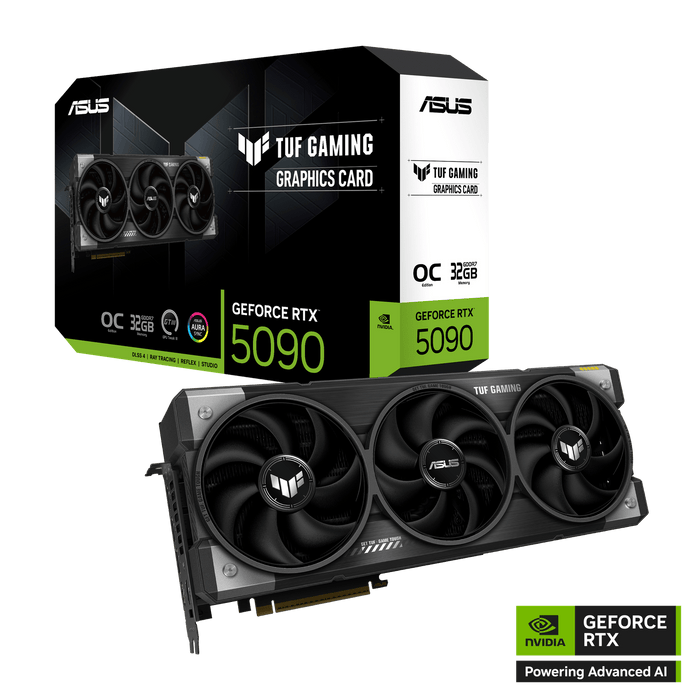

ASUS GeForce RTX 5090 TUF Gaming OC 32GB GDDR7 Graphics Card at a Glance:

Blackwell GPU architecture
21760 CUDA cores with 4th-gen RT and 5th-gen Tensor
Up to 2580MHz boosted clock speeds - unlocked for overclocking
32GB of GDDR7 VRAM
512-bit memory bus
Onboard cooling – ASUS exclusive MaxContact technology and Axial-tech fans

Premium Performance

Crafted with NVIDIA RTX Blackwell architecture, the ASUS GeForce RTX 5090 TUF Gaming OC 32GB GDDR7 Graphics Card comes equipped with everything you need to dominate the battlefield. Harnessing 21760 CUDA cores, your workloads are rendered at incredible speeds in glorious detail. Onboard RT and Tensor cores utilise NVIDIA’s suite of AI innovations to enhance your in-game immersion, delivering true-to-life lighting and shadows and incredible FPS. This is enhanced further by the integrated Neural Shader, combining powerful neural networks into several programmable shaders to improve material and character rendering, lighting, and much more.

What’s more, up to 32GB of premium GDDR7 VRAM and the 512-bit memory bus work in tandem to keep operations efficient and gameplay silky-smooth, even at 4K resolutions. In addition to all of this, the ASUS GeForce RTX 5090 TUF Gaming OC 32GB GDDR7 Graphics Card comes unlocked for overclocking, tweaked to reach blazing fast speeds of 2580MHz to deliver you a serious uplift in performance as you game, stream, or create.

Engineered to Last

The ASUS GeForce RTX 5090 TUF Gaming OC 32GB GDDR7 Graphics Card has been built utilising military-grade components to ensure rock-solid performance. The combination of TUF chokes and MOSFETs enhances overall system stability. What’s more, TUF 5K black metallic capacitors, featuring a 2.5 times longer lifespan than standard variants, have been rigorously tested under high temperatures to provide a 52% wider tolerance.

A specialised conformal coating on the PCB covers the entirety of the circuit board to protect against any short circuits caused by moisture, dust, or unwanted debris. In addition to this, ASUS GPU Guard applies an adhesive to secure all four corners of this graphics card to reduce the risk of cracks. The included GPU bracket provides extra stability when mounting, eliminating any unwanted sagging.

Cooling Mastery

To keep temperatures to a minimum, the ASUS GeForce RTX 5090 TUF Gaming OC 32GB GDDR7 Graphics Card features an advanced cooling design. Twelve powerful heatpipes and a dedicated vapour chamber work in sync to rapidly draw excess heat away from the GPU. This is then expelled out of the three high-quality Axial fans, featuring durable dual-ball bearings to propel 23% more air than standard fans. What’s more, the two outer fans have been designed to spin counterclockwise to reduce unwanted turbulence and improve air dispersion. All three of the Axial fans stop when the graphics card reaches below 50° for whisper-quiet operation under light loads. When the temperature rises above 55°, the fans ramp up. All of which can be configured in GPU Tweak III software, granting you full control over the fan curves.

What’s more, the ASUS-exclusive Max Contact technology, intelligently expands the surface area of the GPU heat spreader by 5% to notably improve temperatures by up to 2°. The phase-change GPU thermal pad has been melted to fill any unwanted gaps between the graphics card and thermal pad. This provides superior thermal conductivity, facilitating minimal heat and long-lasting reliability, even under heavy-duty loads.

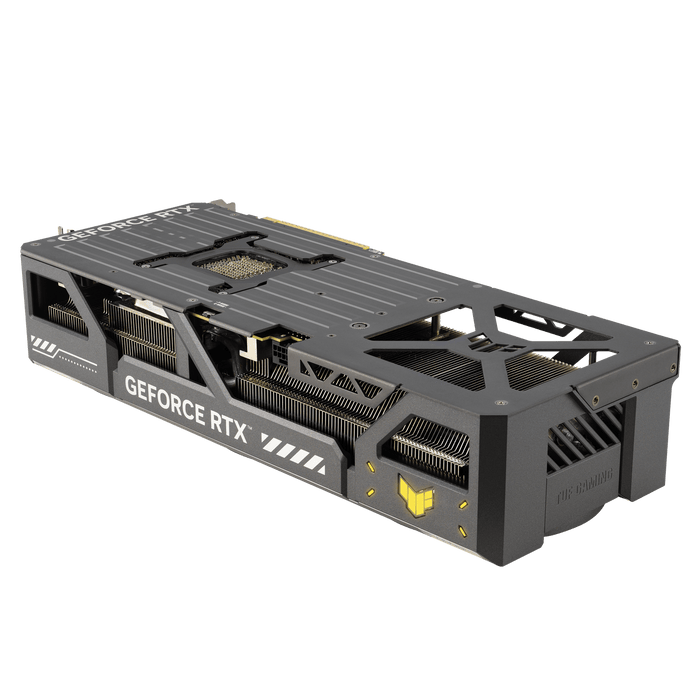

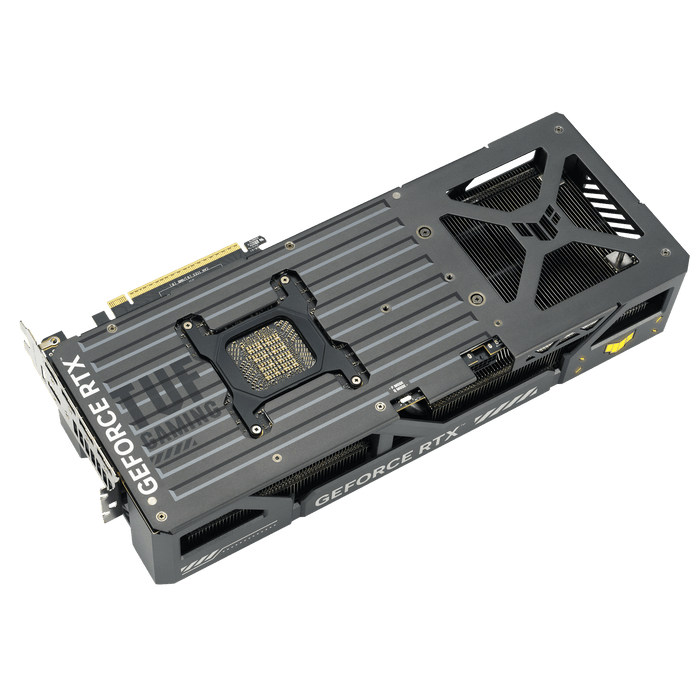

All of which is housed in a well vented exoskeleton. The ASUS GeForce RTX 5090 TUF Gaming OC 32GB GDDR7 Graphics Card frame features a high-quality diecast shroud and aluminium backplate, which prevents any PCB flex. Integrated vents within the frame increase heat dissipation, ensuring air flows throughout the graphics card.

Stylish Aesthetics

To ensure the ASUS GeForce RTX 5090 TUF Gaming OC 32GB GDDR7 Graphics Card looks the part within your PC, this GPU sports an all-black outer shell that is sure to blend seamlessly with the rest of your gaming hardware.

Specifications

Water Cooling
Watercooling	No
Lighting
Lighting / RGB	Yes
Lighting Colour	RGB
AI
AI Accelerator	Tensor Cores
AI Acceleration	Yes
Colour
Primary Colour	Black
Standards / Specifications
Adaptive Sync Technology (G-SYNC / FreeSync)	NVIDIA G-SYNC
Dimensions
Length / Depth	348 mm
Width	146 mm
Height	72 mm
Features
Virtual Reality Ready	Yes
Cooling
Number of GPU Fans	3
Graphics Card
GPU Series	RTX 50 Series
Expansion Slots
Expansion Slots Required	3.5 Slots
Clock Speeds
Max. GPU Clock (Base)	2017 MHz
Max. GPU Clock (Boost)	2580 MHz
Max. Memory Clock	28000 MHz
External Ports

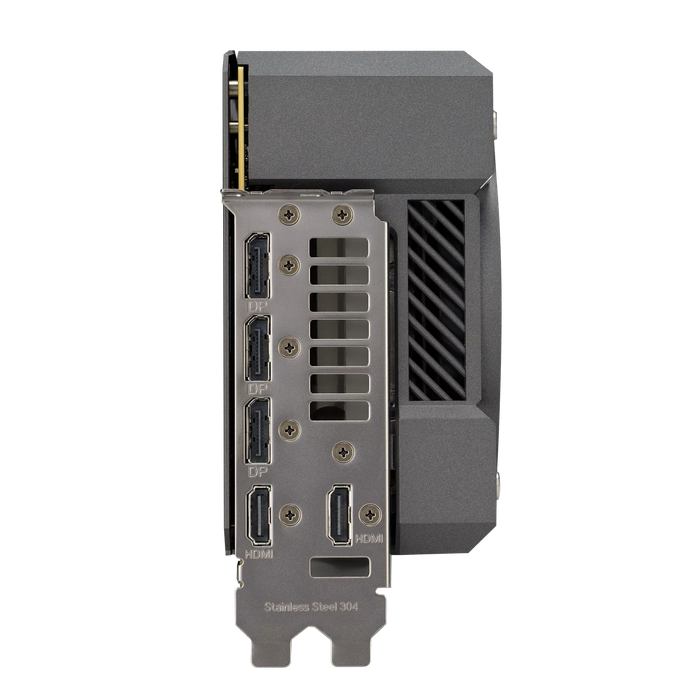

Display Connectors	HDMI (2x), Display Port (3x)
Display Connector Standards	HDMI 2.1, DisplayPort 2.1
Internal Ports
Required Power Connectors	16-Pin PCIe 5.0 - 12v-2x6 (1x)
GPU Model
GPU Series Name	NVIDIA GeForce RTX 5090
Graphics Chip	GB202-300
Manufacturing Process	5 nm
Shader Units	21760
Tensor Cores	680
Raytracing Cores / Ray Acceleratorss	170
GPU Memory Type	GDDR7
Slot Type Standard	PCIe 5.0
GPU Memory Size (GB)	32
GPU Memory Interface (bit)	512
GPU Memory Bandwidth (GB/s)	1792
GPU Effective Memory Clock (MHz)	2209

ASUS GeForce RTX 5090 TUF Gaming OC 32GB Graphics Card
