Game-Changing Performance

Imagine up to 7,300 MB/s of sequential read speed*¹ and up to 6,400 MB/s sequential write speed*¹, and you have the KIOXIA EXCERIA PRO Series. Designed to reduce game loading, video editing and graphic rendering time, the EXCERIA PRO Series helps your content creation or gaming environment excel.

Small and Compact for an Easy Upgrade

Featuring a thin, single-sided M.2 2280 form factor, the EXCERIA PRO SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade.

PCIe^® 4.0 Technology

This “hero” class KIOXIA SSD delivers powerful performance utilizing the PCIe^® 4.0 and NVMe™ 1.4 technology. EXCERIA PRO SSD series push the boundaries of flash storage technology, offering enhanced real-world performance that will blow away hardcore gamers and content creators.

Cutting-Edge 3D Flash Memory

Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.

SSD Utility Management Software

The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!

We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge

EXCERIA PRO SSD Product Specifications

Capacity / dimensions

Capacity

1TB, 2TB
Form Factor

M.2 Type 2280-S2-M
Interface

PCI Express^® Base Specification Revision 4.0 (PCIe^®)
Flash Memory type

BiCS FLASH™ TLC
Interface Maximum Speed

64 GT/s (PCIe^® Gen4x4)
Dimension (Max: LxWxH)

80.15 x 22.15 x 2.23 mm
Interface Protocol

NVM Express™ Base Specification 1.4
Weight

1TB: 7.6 g (typ.)
2TB: 8.0 g (typ.)

Performance

Max Sequential Read Speed^*1

7,300 MB/s
Max Sequential Write Speed^*1

6,400 MB/s
Max Random Read Speed^*2

1TB: 1,000,000 IOPS
2TB: 800,000 IOPS
Max Random Write Speed^*2

1TB: 1,100,000 IOPS
2TB: 1,300,000 IOPS
Endurance: TBW^*3

1TB: 400 TB
2TB: 800 TB
MTTF

1.5 million hours

Operating environment / protection performance

Operating Temperature

0 ℃ (Ta) to 85 ℃ (Tc)
Storage Temperature

-40 ℃ to 85 ℃
Certification

RoHS compliant^*5
Shock Resistance

9.806 km/s² {1,000 G} 0.5 ms half sine wave
Vibration

196 m/s² {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
Supply Voltage

3.3 V ±5 %
Power Consumption

PS3: 50 mW (typ.)
PS4: 5 mW (typ.)
Power Consumption (Active)

8.9 W (typ.)

Compatibility

Connector Type

M.2 M key Socket
Target Applications

Client desktops and laptops

Others

Services and Support

Up to 5-year manufacturer's warranty^*4
Performance Optimization

TRIM, Idle Time Garbage Collection

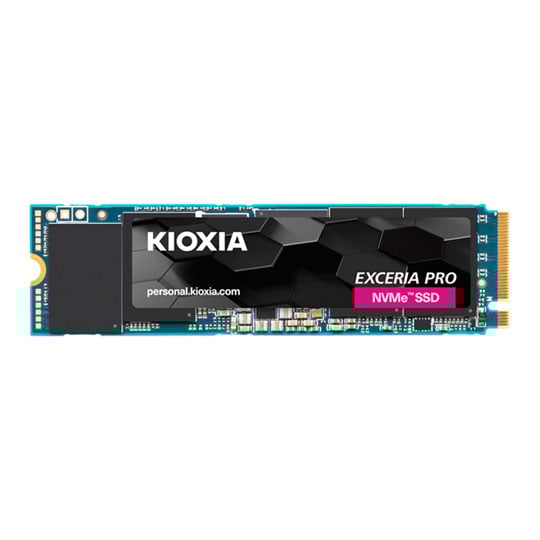

1TB Kioxia Exceria PRO PCIe 4.0 NVMe M.2 SSD
