DeepCool LP240 Liquid Cooler Overview
The LP240 is the latest in DeepCool's acclaimed 5th generation lineup of liquid coolers, engineered for high-performance cooling and sleek customization. It combines cutting-edge thermal efficiency with user-friendly software and stylish aesthetics.

Key Features

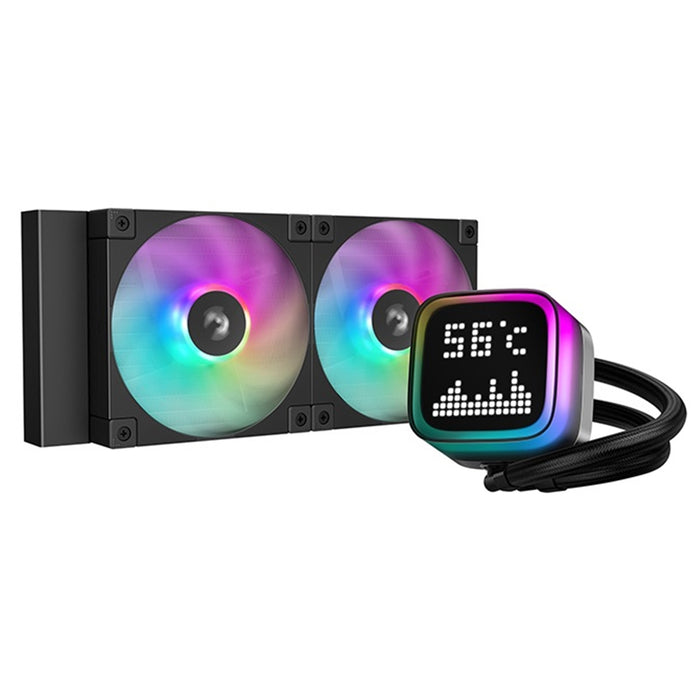

Customizable Pixel Display
Transparent ARGB pump bezel with a dot-matrix LED screen.
Create custom pixel art using a 14x14 grid or choose from preset designs.
Matches DeepCool's clean, pixel-themed design language.

DeepCreative Control Software
Full control of the LP240 via the DeepCreative application.
View real-time system stats, manage compatible devices, and configure lighting.
Sync ARGB halo with motherboard or personalize the dot-matrix screen with single/dual parameter data.

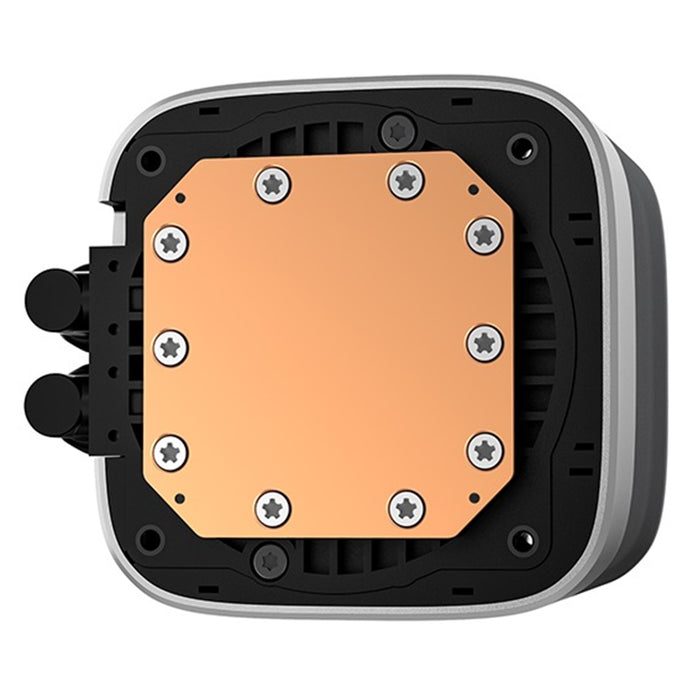

5th Gen PRO Pump Technology
Features a high-performance 3-phase, 6-slot, 4-pole motor.
Operates at up to 3400 RPM for advanced CPU cooling.
Ideal for power-hungry modern CPUs.

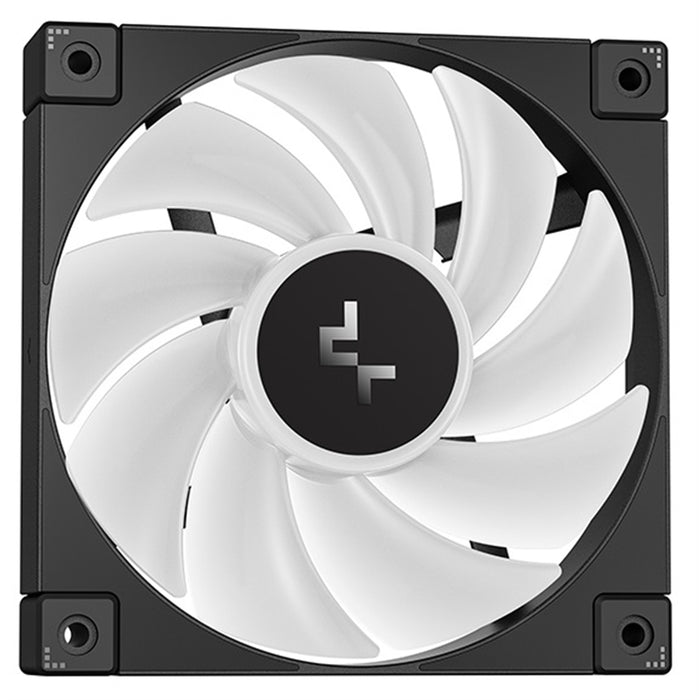

FD12 ARGB PWM Fans
Includes 2 finely tuned FD12 fans with Hydro Bearings.
Strong airflow, low noise, and long-lasting durability.
Uses an 8-pin daisy-chain cable for simplified cable management.

Anti-Leak Technology
Patented system regulates and purges excess pressure.
Increases lifespan and reduces leakage risk.

Quick and Easy Installation

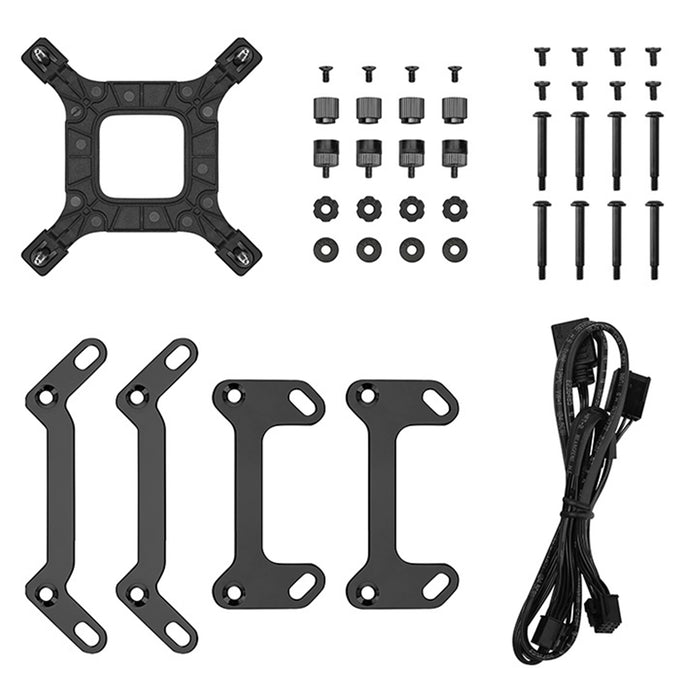

Universal mounting hardware for Intel and AMD platforms.
Balanced contact pressure for optimal thermal performance.
Everything you need is included in the box.

Specifications
Compatibility
Intel:
LGA1851 / 1700 / 1200 / 1151 / 1150 / 1155

AMD:
AM5 / AM4

Cooler Dimensions

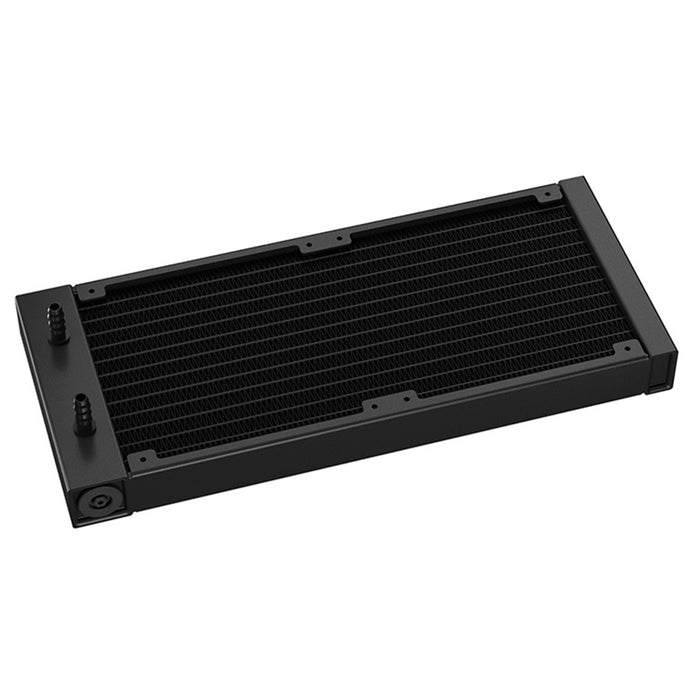

Radiator:
282 x 120 x 27 mm (L x W x H)

Pump:
91 x 78 x 63 mm

Tube Length:
410 mm

Net Weight:
1410 g

Pump Specifications
Speed:
3400 RPM ±10%

Connector:
3-pin

Voltage:
12 VDC

Current:
0.35 A

Power:
4.2 W

Fan Specifications
Dimensions:
120 x 120 x 25 mm

Speed:
600–2400 RPM ±10%

Airflow:
72.04 CFM

Air Pressure:
3.48 mmAq

Noise Level:
=38.71 dB(A)

Connector:
4-pin PWM

Bearing Type:
Hydro Bearing

Voltage:
12 VDC

Current:
0.22 A

Power:
2.64 W

ARGB & Display
LED Type:
Addressable RGB

LED Connector:
3-pin (+5V-D-G)

LED Voltage:
5 VDC

LED Power:
2.8 W (Pump) / 2.1 W (Fans)

Display:
LED Dot-Matrix Digital Display

DeepCool LP240 Custom Pixel Display 240mm AIO Liquid Cooler
